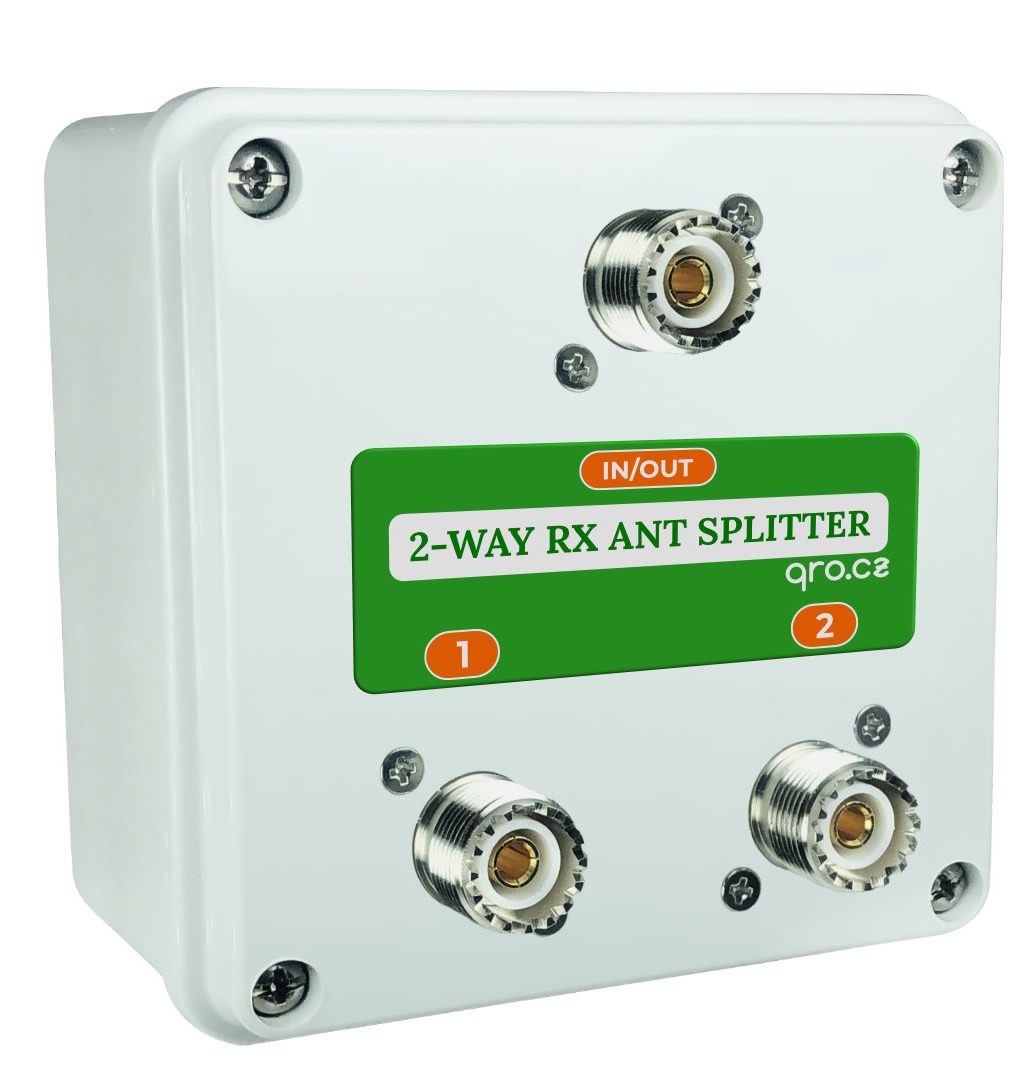

2-weg splitter
in kunststof kast

Main functions

• Broadband: 0.1 MHz to 160 MHz
• Splitter or Combiner
• Low insertion loss
• Protections – high voltage / current
• 50 / 75 Ohm impedance – easy jumper switch
• Electrostatic protection by neon lamps
• High power protection
• stainless screws
• Quality connectors
• IP56 box – recommended to protect it against water
• Feeder size 100×100 mm
• ASSEMBLED AND TESTED VERSION

Parameters

• Impedance 50 or 75 Ohm
• Insert loss: around 0.5 dB
• Split 3 dB, together with IL around 3.5 dB
• Isolation more than 30 dB, 160-15m more than 35 dB
• SWR on splitted ports better than 1 : 1.1 up to 6m
• SWR on main port around 1 : 1.2 up to 6m
• Maximal current continue 100 mA
• Maximal voltage around 65 V
