TunerGenius XL SO2R

De eerste SO2R-tuner op de amateurmarkt.

De Tuner Genius XL is een tuner die het hele gebied van 1,8 MHz tot 54 MHz kan tunen bij een SWR van 10: 1.
De tuner kan maar liefst een vermogen tot 2000W ICAS verwerken. De Tuner Genius XL is gebouwd volgens de commerciële normen van de "broadcastindustrie".

Bedieningsgemak

Alle instellingen van de Tuner Genius XL-functies kunnen worden bediend vanaf het front van de tuner. Maar ook met een Windows applicatie. Hierdoor is het mogelijk dat de tuner niet perse op uw bureau hoeft te worden geplaatst. Ook de zeer nauwkeurige HF-vermogen (PEP) en SWR meters zijn zowel op het front als in de Windows applicatie beschikbaar.

Volledig geïntegreerd

De Tuner Genius XL is volledig geïntegreerd met de Power Genius XL RF linear en ALLE HF-zendontvangers uit de FLEX-6000-serie.
Alle FlexRadio-producten maken gebruik van een standaard LAN-communicatieprotocol en met de gepubliceerde API kunt u zelfs uw eigen toepassingen voor uw tunerconfiguratie schrijven.
Hoewel u uw Tuner Genius XL kunt gebruiken met elke moderne HF-radio die momenteel op de markt is, krijgt u bij gebruik in combinatie met een Power Genius XL en een FLEX-6600 of FLEX-6700 transceiver een volledig SO2R station (single operator, 2 radio). Inclusief ondersteuning voor multiFLEX ™ bediening. Contesten dus met lagere kosten en meer bedienings- en installatiegemak.

An advanced engineering approach to tuner development has resulted in truly highest quality hardware and software solutions.
Our software developers have extended the tuner with new functions, and completed integration with Antenna Genius, forming a single system. Very easy to use, uncompromisingly functional, the integration of TGXL into the Genius platform extends both functions as well as protection systems.

Once setup, TGXL will remember individual settings for each frequency change and will go to bypass if your antenna is in a segment with good SWR.
TGXL also features an extremely accurate power and SWR meter.

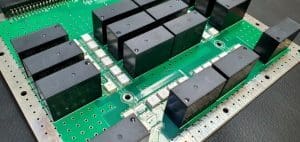

The RF block was carefully designed and is built from only the highest quality RF capacitors, making sure it’s capable of enduring currents and voltages generated by high SWR’s. On the images below you can see the C block of the tuner, with capacitors that would individually endure RF currents of 10-15A and voltages from 1500 to 3500V.

A careful calculation on all frequencies and impedances has enabled us to to choose the best components and making the tuner as efficient as possible. It also features mechanisms for protection in extreme cases by reducing the maximum working conditions and protecting RF components from damage.

The table shows maximum power per band that the tuner can handle, for different SWR values on the antenna.

SWR tabel

Preliminary specification of TGXL automatic antenna tuner - 2000W.
We might change some technical details without notice.

  • Integrates with any transceiver
  • Designed to complement FLEX-6000 series transceivers and the Power Genius XL™ amplifier
  • Seamless SmartSDR™ software integration
  • Complete control and monitoring (over LAN) from an intuitive Windows™ application
  • Contest ready - the ONLY single-radio SO2R solution in amateur radio
  • High accuracy SWR and power meter measures in bypass mode.... and much more.

General Specification

  • Tuning: Fully automatic and manually tuned operation
  • Frequency Range: 1.8 to 54 MHz continuous
  • Radio Interface: Works with all radios using Flex radio LAN, RS232, CI-V, BCD, Pin-to-Band (PTB), or use the built in frequency counter.
  • Alarms and Warnings: Low drive, Frequency Out of Range, Wrong band, and High power
  • Matching Range: Up to 10:1 SWR. Resonant antenna frequency range memories will bypass the tuner automatically.
  • Tuning Time: Tuning solutions (2 to 12 seconds) are stored in memory automatically. Stored memory switching is 20ms.
  • Tuning Power Requirement: 10W - 200W

User Interface

  • Large 4.5” color touch screen display
  • Front panel controls for manual switching, tuning & configuration
  • Windows™ utility application for over the network control and configuration

RF Characteristics

  • Nominal Impedance: 50-Ohm unbalanced
  • Nominal Operating Power: Up to 2000W
  • Duty Cycle: 100% ICAS
  • Protection: Intelligent SWR and power derating

SO2R Version

  • Inputs and Outputs: 2 in, 2 out - each input is paired with one output
  • Switching: Non-matrix SO2R, manual or automatic by frequency/band
  • Connector type: UHF/PTFE (SO-239A)

Mechanical/Electrical

  • Power Supply: 12 - 16V DC @2A via an external 100 to 240 VAC power supply
  • Dimensions: 11.8” W x 13.8” D x 5.9” H (30cm W x 35cm D x 15cm H)
  • Weight: 15.4 lbs (7kg)

 Environmental

  • Temperature Range: -4F (-20C) to +122F (+50 C)
  • Humidity: up to 98 percent (non-condensing)
  • Altitude (ASL): up to 10,000 feet (3,050m)
