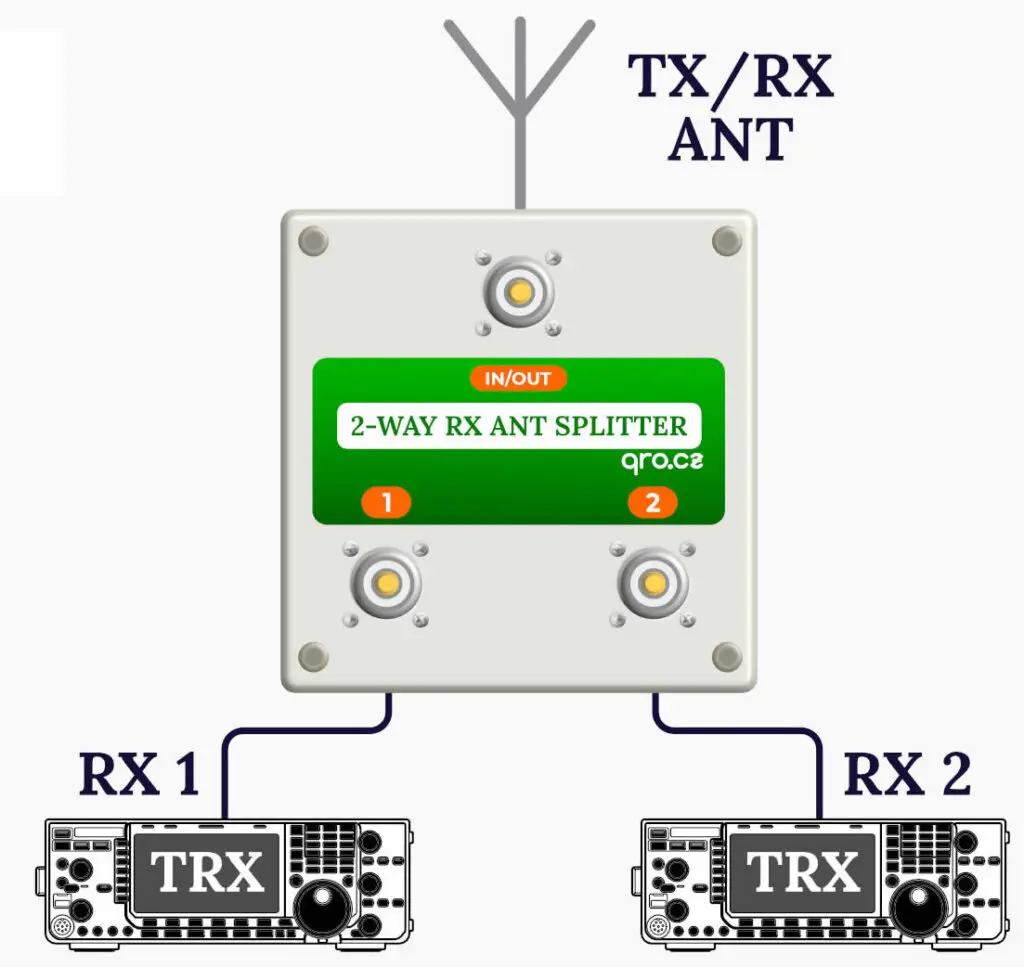

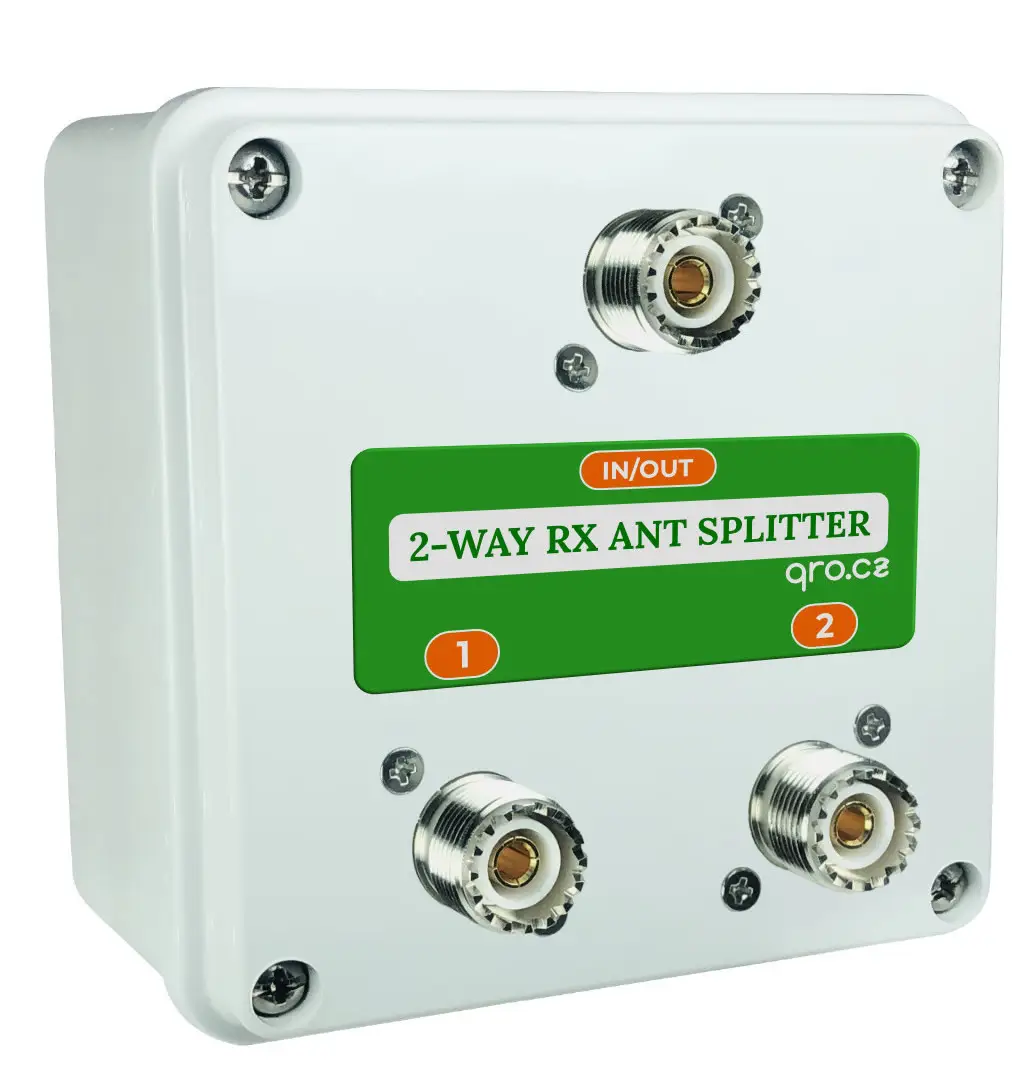

Twee radio’s, één antenne. Actieve splitter van 100kHz tot 160MHz. In kastje met UHF connectoren. De ingangen zijn beveiligd met neonlampen.
Main functions
- Broadband: 0.1 MHz to 160 MHz
- Splitter or Combiner
- Low insertion loss
- Protections – high voltage / current

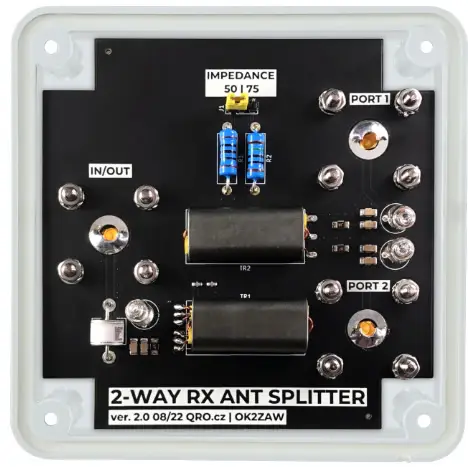

- 50 / 75 Ohm impedance – easy jumper switch
- Electrostatic protection by neon lamps
- High power protection
- stainless screws
- Quality connectors
- IP56 box – recommended to protect it against water
- Feeder size 100×100 mm
- ASSEMBLED AND TESTED VERSION
Parameters
- Impedance 50 or 75 Ohm
- Insert loss: around 0.5 dB
- Split 3 dB, together with IL around 3.5 dB
- Isolation more than 30 dB, 160-15m more than 35 dB
- SWR on splitted ports better than 1 : 1.1 up to 6m
- SWR on main port around 1 : 1.2 up to 6m
- Maximal current continue 100 mA
- Maximal voltage around 65 V
