B2BCD

On the rear panel you will find:

1. DC connector – to connect external power supply, 15V DC/500mA
2. RS232 input connector – DB9 male, used to connect your transceivers CAT output
3. RS232 output connector – DB9 female, used to conect any other device which need RS232 CAT data, like USB interface, amplifier etc
4. CI-V input connector – 3.5mm stereo, used to connect your ICOM transceivers CI-V output
5. CI-V output connector – 3.5mm stereo, used to conect any other device which need CI-V data, like USB interface, amplifier etc
6. Icom voltage control band input – 2.5mm mono, used to connect your older ICOM transceivers band data output
7. BCD output connector – DB9 female, used to control periphels with BCD data, like Antena Genius, amplifiers etc

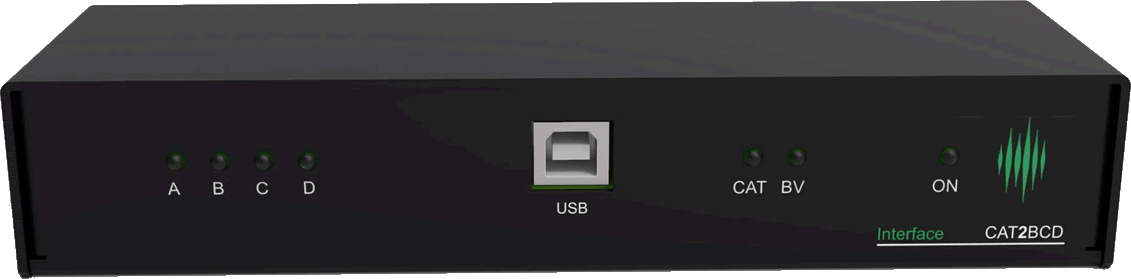

On the front panel you will find:

1. Four BDC LEDs, showing current BCD output status
2. USB connector – for communication with PC
3. CAT LED – status of CAT
4. BV LED – Showing status of BV Band data
5. ON LED – showing power supply status

Win Applicaton for settings

To set device for connected radio, use our Windows Application.
